COMPANY CULTURES: VISION：We aim to become a global high-end precision hardware cold extrusion service provider and can continue to contribute unique value, worthy of long-term trust as partners in China. MISSION：We focus on and deeply cultivate the precision cold extrusion field to solve the difficulties and pain points of the industry and customers as our mission. Also we continue to innovate, join the global high-end manufacturing industry chains, and promote high-quality "Made in China" hardware to the world VALUES： *Quality first *supreme service *honest and pragmatic *customer satisfaction
STANDARD METAL, we are professional solutions provider who focus on hardware consecutive precision cold extrusion technology to solve the industry problems of high cost, low efficiency, difficult processing of high-tech hardware manufacturing.
Technical Features: 1). High precision molding, fast speed, parts tolerance can be tested within +/ -0.02mm. 2). One time molding without other supporting process. 3). Truly optimize the cost, applicable to Invar, Kovar, copper, iron, nickel, aluminum, stainless steel and other raw materials which are malleable under HV220 hardness degrees can be completed into extrusion molding. STD really solves the angle collapse problems in cold pier and stamping process
STANDARD METAL has a number of independent intellectual property rights included 12 domestic and international invention patents.
We mainly focus on optical communication, car automotive sensors, industrial automation, precision medical equipments, aviation industrial automatic control hardware, military packaging hardware, consumer electronics hardware and other applications. STD is using high-technology, unique innovation and modern process management to provide highly competitive products and offer professional services to meet customer needs.
Precision cold extrusion is also defined as a compression molding process, the material is a billet, the process is performed at room temperature, and deformation heating is the process of converting deformation work into heat. Typically, a punch is used to apply pressure to a closed blank in a stationary die. This pressure can be applied partially or fully as desired.
The difficulty in the application of precision cold extrusion technology is that it has high requirements for molds, requires a large tonnage press, and has high costs. Surface treatment is required before extrusion, and it is not suitable for processing high-strength materials. Poor, the residual stress of the part is large, which will cause deformation and corrosion resistance of the part.
We can divide precision cold extrusion into three main processes: forward extrusion, reverse extrusion, and lateral extrusion.
Forward extrusion: The material flows in the direction of the displacement of the punch, it is pressed into the die through the hole, the diameter of the rod/tube can be reduced, the billet (tubular) is extruded through the forward extrusion die, the force is A punch and mandrel acting as a pusher is applied, reducing the outer diameter as the tubular portion elongates.
Reverse extrusion: The material flows in the other direction of the punch displacement, and the billet enclosed in the die is forced to flow backwards from the annular area located between the die and punch.
Lateral extrusion: The material flows perpendicular to the displacement of the punch, and the material surrounded by the punch and die is forced to flow through radially placed holes.

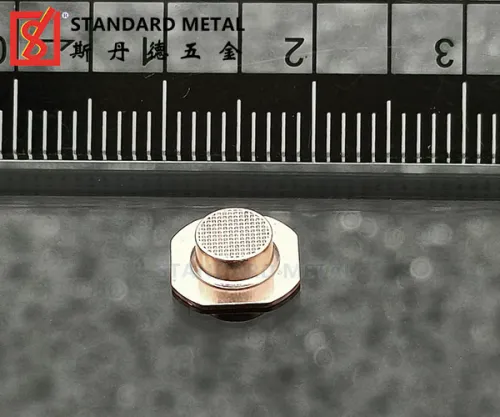

The product is miniature, the size of 1 cubic millimeter hardware structure can be produced.
Good reputation! Fine workmanship in line with buyer's specifications, delivery on time.
High precision of products, tolerance ±0.02mm can be guaranteed.
Fast delivery speed, daily output of more than 200,000P.
This is one of the most common questions, especially by then newbies trying to find out more about forging technology. There are various types of forging, and cold forging is just one of them. As the name suggests, cold forging is all about the forging method that works on the metal at room temperature. Unlike hot forging, where the metal is heated to crystallization temperature, or warm forging, where the metal is slightly heated, the cold forging method works formed metal when at room temperature. That’s why it is referred to as cold. However, there are cases when the metal could be heated slightly if it is too hard.
There are so many questions on the operation of the cold extrusion forging. Different approaches could depend on the kind of item being formed, but the principle of operation remains the same. Like other forging methods, the technique works on compressing the metal or the billet against the molds or dies to form the desired shape. The billet can be any metal that can be cold forged, and the mold is always made from a stronger and harder metal. This enables it to withstand the high compression force that deforms the metal being forged.
There are several things that you need when it comes to doing cold extrusion forging. One of them is the right material for the kind of products that you want to make. If you have a range of materials that you can use for this type of forging but soft metals such as aluminum are the most common. Apart from the materials, you need molds and hydraulic press machines. The molds form the desired products’ shapes while the press machine produces the required compression force to deform the billet. These are basic things you need to know about cold extrusion forging.
