Deep drawing part Definition

Deep drawing part Definition

Deep drawing is a sheet metal forming process in which a sheet metal blank is radially drawn into a forming die by the mechanical action of a punch. It is thus a shape transformation process with material retention. The process is considered “deep” drawing when the depth of the drawn part exceeds its diameter.

Get A Quote

Why Choose Robot?

Company clear values

COMPANY CULTURES: VISION:We aim to become a global high-end precision hardware cold extrusion service provider and can continue to contribute unique value, worthy of long-term trust as partners in China. MISSION:We focus on and deeply cultivate the precision cold extrusion field to solve the difficulties and pain points of the industry and customers as our mission. Also we continue to innovate, join the global high-end manufacturing industry chains, and promote high-quality "Made in China" hardware to the world VALUES: *Quality first *supreme service *honest and pragmatic *customer satisfaction

We focus on the leader in precision cold extrusion process and solutions to reduce manufacturing costs

STANDARD METAL, we are professional solutions provider who focus on hardware consecutive precision cold extrusion technology to solve the industry problems of high cost, low efficiency, difficult processing of high-tech hardware manufacturing.

Technical Features Advantages

Technical Features: 1). High precision molding, fast speed, parts tolerance can be tested within +/ -0.02mm. 2). One time molding without other supporting process. 3). Truly optimize the cost, applicable to Invar, Kovar, copper, iron, nickel, aluminum, stainless steel and other raw materials which are malleable under HV220 hardness degrees can be completed into extrusion molding. STD really solves the angle collapse problems in cold pier and stamping process

about Robot

We Have The Best Solutions for Your Business

STANDARD METAL has a number of independent intellectual property rights included 12 domestic and international invention patents.

We mainly focus on optical communication, car automotive sensors, industrial automation, precision medical equipments, aviation industrial automatic control hardware, military packaging hardware, consumer electronics hardware and other applications. STD is using high-technology, unique innovation and modern process management to provide highly competitive products and offer professional services to meet customer needs.

Read More

Deep Drawing vs Casting

Drawing is a cold working process, while casting is a hot working process. Through fusion, the material is turned into a liquid state by heating and then poured into special moulds where it solidifies and assumes the desired geometry. Casting techniques are not suitable for all types of materials and the fusion and castability of the alloy to be cast always needs to be checked. Typically, it is used to produce objects and components for faucets, handles, coffee machines, carburetors, valves, etc.

Designing viable parts by deep drawing part often results in lower unit costs, higher productivity and quality, and often lower production costs. Not surprisingly, many parts that used to be produced by casting have been converted to deep drawing.


Featured Products

Collection about Robot

User Reviews

What users say about Robot

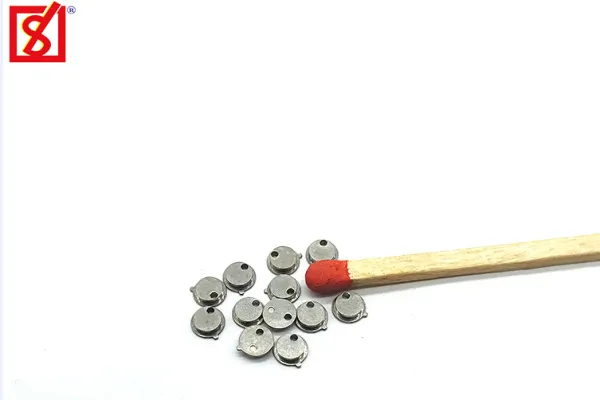

The product is miniature, the size of 1 cubic millimeter hardware structure can be produced.


Good reputation! Fine workmanship in line with buyer's specifications, delivery on time.


High precision of products, tolerance ±0.02mm can be guaranteed.


Fast delivery speed, daily output of more than 200,000P.

Frequently Asked Question

Do you have any question?

 This is one of the most common deep draw problems. Fracturing of the metal during the draw process can be caused by several issues although the most common is the clearance between the punch and the die. If this is too small, too large, or uneven, the material can be cracked during drawing.

All the factors involved in a deep drawing manufacturing process will have an effect on the quality of the part. Sheet metal parts can be tested for formability. Blanks are often printed with a square grid with circles in each grid box. The squares and circles distort with the sheet metal as the process occurs.

Although the finished product might look simple, and no doubt the experts make it look easy, the deep drawn process is actually one of the most complicated methods of manufacturing available. The act of forcing metal into a given shape introduces a host of possible problems and concerns.
